How Does Cnc Machining Work

Views: 0     Author: Site Editor     Publish Time: 2026-05-11      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Many businesses view manufacturing simply as a method to make products. However, modern Cnc Machining acts as a powerful risk-mitigation tool for scaling production. At its core, it is a subtractive process governed by digital coordinate logic. A computer dictates tool movement, speed, and depth across precise X, Y, and Z axes. This technology helps companies transition away from unpredictable manual variation. You gain automated, repeatable precision for high-stakes components.

The shift to digital control drastically reduces human error and shortens production delays. Yet, many buyers still misunderstand the intricate steps required to achieve this repeatability. This article will demystify the technical workflow behind the machines. We will identify hidden cost drivers you might easily overlook during procurement. Finally, you will learn a practical framework to evaluate reliable partners when sourcing CNC machining parts.

Key Takeaways

  • Digital-to-Physical Translation: CNC relies on a strict sequence of CAD design, CAM toolpath programming (G-code/M-code), rigid fixturing, and automated execution.

  • Setup is the Bottleneck: Machine setup and fixturing often dictate project viability and cost; it is the stage where dimensional accuracy is won or lost.

  • Machine Selection Dictates Cost: Specifying 5-axis or Swiss-type machining for simple geometries over-engineers the process and inflates budgets.

  • Hidden Cost Drivers: True unit costs must account for CAM programming, custom fixturing, tooling wear, and post-machining CMM (Coordinate Measuring Machine) inspection.

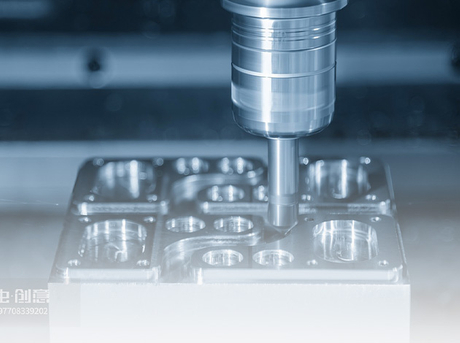

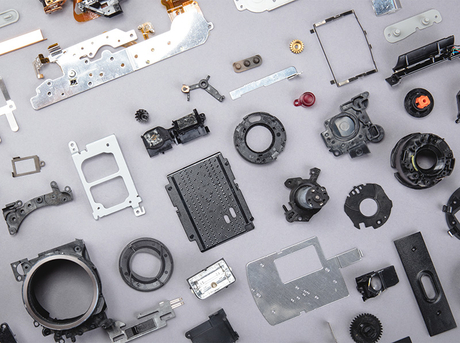

CNC Machining

The Engineering Workflow: How a Digital Model Becomes a Physical Part

1. CAD to CAM Translation (The Strategy)

Engineers start by converting 3D CAD models into actionable data using CAM software. Programmers play a vital role in this initial stage. They determine optimal feed rates and spindle RPM based on material properties. They also design complex toolpaths to maximize material removal. If they choose poorly, they risk severe tool breakage or ruined materials. A good CAM strategy ensures high efficiency while protecting expensive equipment.

2. G-Code and M-Code Generation

Machines speak specific numerical dialects known as G-code and M-code. G-code directs geometric movement. It tells the machine exact coordinates, cutting angles, and depth limitations. Meanwhile, M-code commands hardware functions. It triggers coolant activation, initiates tool changes, and controls spindle stops. You also need custom post-processors. These digital translators convert generic CAM instructions into the specific language your exact machine brand understands.

3. Workholding and Setup (The Reality)

This phase addresses rigid physical constraints. You must fixture the workpiece tightly to resist immense cutting forces. At the same time, clamps cannot obstruct the toolpath. If they do, the machine will crash, causing catastrophic damage. This is the most critical and time-intensive phase. Poor setup guarantees bad parts.

Common Mistake: Many design engineers assume CAM software simulates physical reality perfectly. They often forget to account for clamp vibration or thin-wall deflection during aggressive machining.

4. Execution and Metrology

The process eventually transitions to automated cutting. Rigorous inspection follows immediately afterward. Machines are not infallible. Tool wear happens rapidly during heavy cuts. Thermal expansion shifts metal dimensions during long, hot production runs. Operators must monitor these variables constantly. They verify final dimensions using precise micrometers or automated Coordinate Measuring Machines (CMMs).

Evaluating CNC Machine Configurations and Capabilities

3-Axis Mills vs. Lathes (The Baseline)

Milling rotates a sharp cutting tool against a fixed part. Turning uses a lathe to rotate the part rapidly against a fixed tool. Mills handle orthogonal features, deep pockets, and flat profiles easily. Lathes excel at creating symmetrical cylindrical profiles. These baseline machines serve as the reliable workhorses for standard industrial components.

5-Axis and Multi-Tasking Centers (The Advanced Tier)

Adding two rotational axes changes the entire manufacturing approach. You can machine incredibly complex geometries in a single setup. This creates a distinct business trade-off. You pay significantly higher hourly machine rates. However, you gain drastically reduced setup times. You also achieve tighter multi-sided tolerances because you never unclamp and manually flip the part.

Swiss-Type CNC Lathes

Swiss-type lathes dominate high-volume, micro-precision turning. A specialized guide bushing supports long, slender parts right next to the cutting tool. This vital support prevents the material from deflecting under cutting pressure. They are ideal for tiny medical implants or delicate aerospace pins.

Open-Loop vs. Closed-Loop Systems

Machine control units determine accuracy over time. Open-loop systems send movement signals without checking the physical result. Closed-loop systems use highly sensitive feedback sensors on the machine axes. They continuously correct position errors in real time. You must mandate closed-loop systems for aerospace or medical-grade precision.

Chart: Comparison of CNC Machine Configurations

Machine Type

Best Suited For

Core Advantage

Cost Impact

3-Axis Mill

Flat profiles, basic brackets, enclosures.

Low operating cost, widely available.

Low to Medium

Standard Lathe

Cylindrical shafts, flanges, threaded rods.

Fast material removal for round parts.

Low to Medium

5-Axis Mill

Impellers, aerospace housings, complex curves.

Eliminates multiple manual setups.

High

Swiss-Type Lathe

Long, slender pins, micro-components.

Zero part deflection during cutting.

Medium to High

Material Suitability and Engineering Constraints

Metals: Aluminum, Titanium, and Tool Steels

Machinability ratios dictate how fast you can cut a specific material without destroying the tool.

  • Aluminum: Highly machinable and dissipates heat well. It allows aggressive feed rates, keeping cycle times short and costs low.

  • Titanium: Exceptionally hard and heat-resistant. It requires very slow feed rates. It consumes rigid carbide tooling rapidly, which directly impacts your production budget.

  • Tool Steels: Extremely abrasive. They demand specialized cutting inserts, ultra-rigid machine setups, and copious amounts of high-pressure coolant.

Engineering Plastics: PEEK, Nylon, and Polycarbonate

Machining plastics presents unique challenges that metalworkers often underestimate. Heat accumulation is your biggest enemy here. Aggressive tool passes can easily cause material deformation. Sometimes, the plastic simply melts onto the end mill, ruining the part. Machinists must adjust spindle speeds carefully and use specialized coolants to keep cutting temperatures low.

Tolerance Realities

You must clarify your commercial tolerance expectations before requesting a quote. Standard commercial tolerances hover around ±0.005 inches. For context, this is roughly equivalent to the thickness of a human hair. Extreme precision requirements demand ±0.001 inches or tighter. Demanding extreme tolerances when standard ones will suffice drives up cycle times, scrap rates, and final prices.

Identifying Hidden Cost Drivers in CNC Machining Parts

Programming and NRE Costs

Non-Recurring Engineering (NRE) costs hit your budget early. They cover the upfront cost of CAM programming, fixture design, and initial machine setup. Low-volume runs carry very high per-unit costs. This makes the process highly sensitive to economies of scale. Spreading NRE across thousands of units makes each individual part significantly cheaper.

Consumable Tooling

Specialty end mills, custom taps, and heavy-duty drills act as a hidden budget drain. Machining highly abrasive materials like fiberglass or nickel superalloys destroys cutting tools fast. The machine shop must pass these frequent tool replacement costs onto the buyer. Always consider tool wear when selecting obscure, tough materials.

Feature Complexity Over-Specification

Engineers often over-specify parts without realizing the manufacturing impact. Deep pockets and sharp internal corners require tiny, fragile tools. Round end mills cannot physically cut perfectly square pockets. This geometry forces the shop to use much smaller tools, requiring longer cycle times to clear the material. Non-standard thread sizes also drive up failure rates unnecessarily.

Compliance and Inspection

Quality assurance carries a heavy but necessary price tag. Highly regulated industries like aerospace (AS9100) and medical devices (ISO 13485) demand intense documentation. Verifying precise dimensional accuracy requires dedicated CMM time. A quality inspector must measure every critical dimension. This rigorous verification process adds significantly to the final component cost.

Framework for Evaluating a CNC Manufacturing Partner

Assess Technical Capacity

Do their specific machine types align with your exact geometry? Do not hire a shop equipped only with large-format gantry mills if you need tiny, slender pins. Ensure they match Swiss lathes to micro-components. Volume requirements also matter. A shop suited for prototyping might struggle to deliver ten thousand parts on schedule.

Inquire About Process Controls

Ask how they handle tool wear mid-batch. Ask how they compensate for thermal drift during long "lights-out" shifts. Unattended manufacturing is fantastic for reducing labor costs. However, without automated probing systems and tool breakage detection, an entire overnight run might produce a bin full of expensive scrap.

Review Quality Assurance Infrastructure

Ensure they possess robust, in-house metrology equipment. They need CMMs and optical comparators that genuinely match your requested tolerances. If your engineering drawings demand ±0.0005 inches, hand calipers and micrometers will not suffice.

Communication on Manufacturability

A trustworthy vendor consistently pushes back on design flaws. They will conduct Design for Manufacturability (DFM) reviews to reduce cycle times. They will not blindly quote an inefficient, overly complex design. Instead, they collaborate with you to make the part easier, faster, and cheaper to produce.

Best Practice: Always request a First Article Inspection (FAI) report before approving full-scale production. This documentation mathematically proves the vendor's setup process is stable and accurate.

Conclusion

Cnc Machining remains a highly deterministic process governed by strict physics and code. However, its ultimate success relies heavily on the human expertise driving the CAM programming and physical setup. To optimize your budget, you must strike a careful balance. You must align part design, material selection, and appropriate machine architecture perfectly.

Take proactive steps before seeking external quotes for CNC machining parts. Encourage your decision-makers to conduct a thorough DFM review with internal engineering teams. Remove sharp internal corners, standardize thread sizes, and relax unnecessary tight tolerances. By doing so, you will secure better pricing, faster lead times, and superior final components.

FAQ

Q: What is the difference between CNC milling and CNC turning?

A: CNC milling rotates a cutting tool against a stationary part to remove material. It is ideal for flat, orthogonal, and asymmetrical geometries. CNC turning rotates the workpiece rapidly on a lathe against a fixed cutting tool. This method is best suited for creating cylindrical profiles, grooves, and threaded shafts.

Q: How tight of a tolerance can a CNC machine hold?

A: Standard CNC machines easily hold commercial tolerances of ±0.005 inches. High-end machines can achieve extreme tolerances of ±0.0005 inches or tighter. However, demanding extreme precision requires meticulous thermal control, slower cutting speeds, and specialized metrology, which exponentially increases the final part cost.

Q: Why are sharp internal corners expensive in CNC machining parts?

A: CNC machines use rotating, cylindrical cutting tools called end mills. Physics prevents a round tool from cutting a perfectly square internal corner. To achieve a nearly sharp corner, machinists must use extremely small, fragile tools. This requires significantly longer cycle times and drastically increases the risk of tool breakage.

Q: What are DNC and MDC systems in modern CNC shops?

A: DNC stands for Distributed Numerical Control, which networks multiple machines to a central server for seamless program management. MDC means Manufacturing Data Collection. It tracks real-time machine performance and operator data. Suppliers utilizing these systems demonstrate mature, data-driven operations with high reliability and transparency.
