High Precision Factory of Custom Stainless Steel 304 Bent Pipe with Irregular Flange Assembly

Custom CNC Machining for Complex Industrial Components

As an experienced cnc machining manufacturer, we specialize in precision CNC machining for complex metal components and custom assemblies. With 18 years of manufacturing experience, our professional factory provides complete OEM and custom machining services based on customer-supplied 2D drawings, 3D CAD files, samples, or specific technical requirements.

From dimensional modifications and custom thread standards to specialized surface treatments, we help engineers and purchasing teams turn complex component designs into production-ready parts. Our manufacturing capabilities are particularly suited to applications where dimensional accuracy, reliable connections, corrosion resistance, and consistent assembly performance are critical.

Custom Stainless Steel Flange and Bent Pipe Assembly

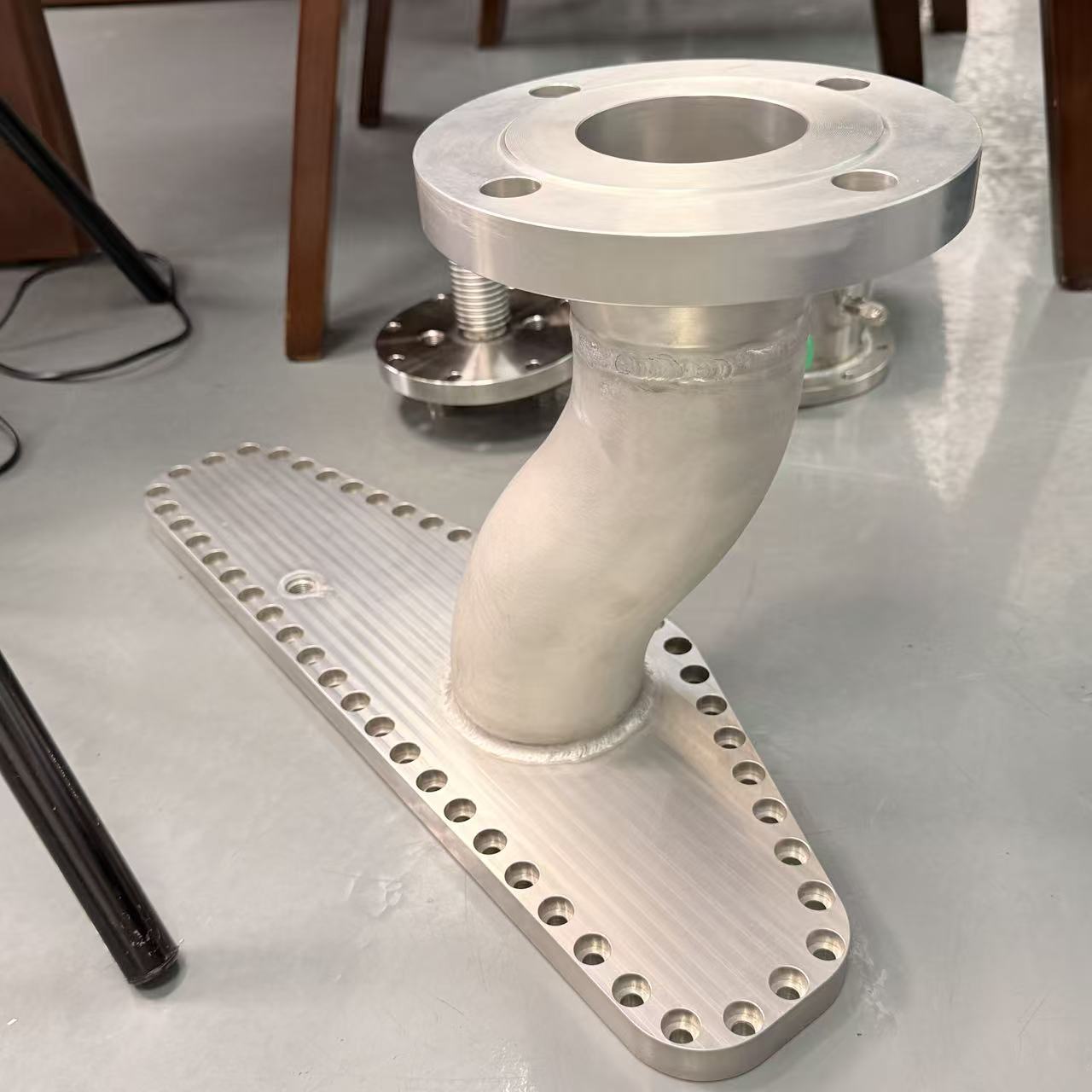

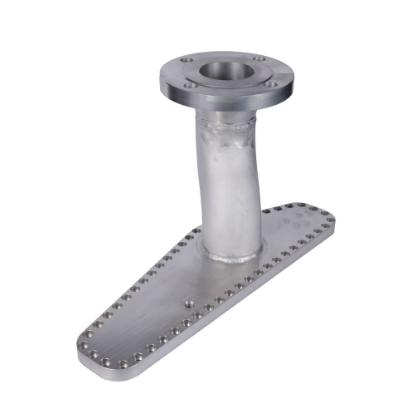

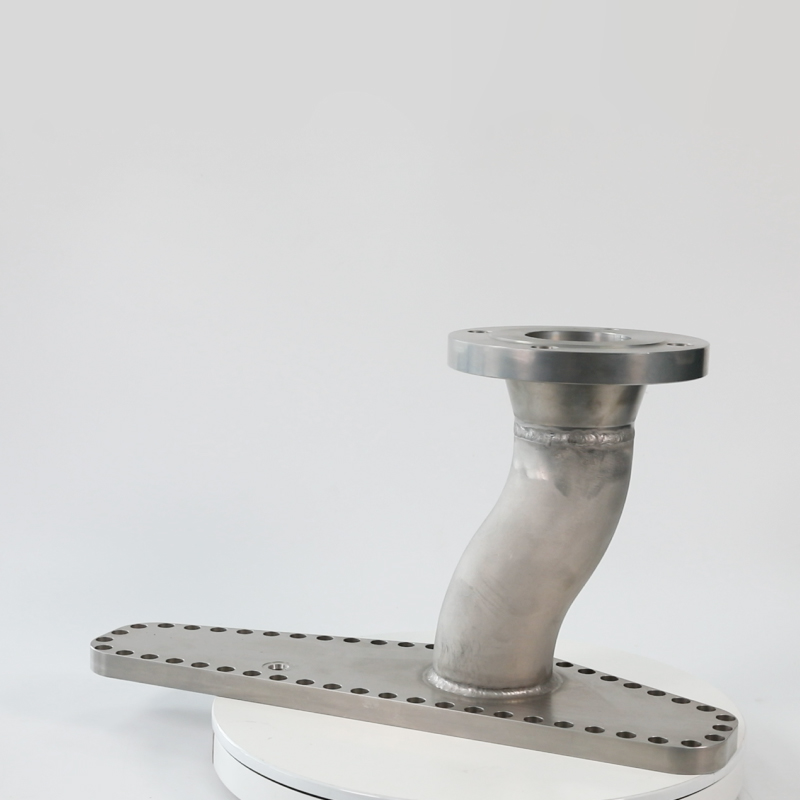

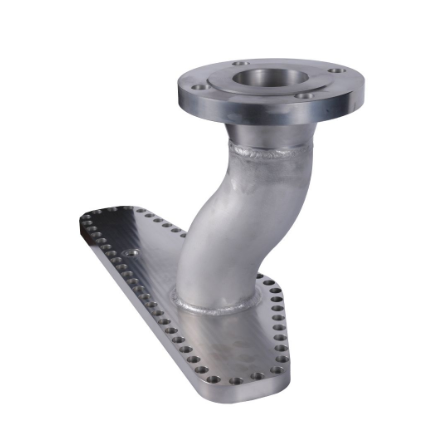

This customized component combines a large irregular multi-hole flange, an S-shaped bent pipe, and a standard round flange into an integrated pipeline assembly. The design is intended for fluid and vacuum pipeline connections where installation space is limited and conventional straight pipe configurations are not suitable.

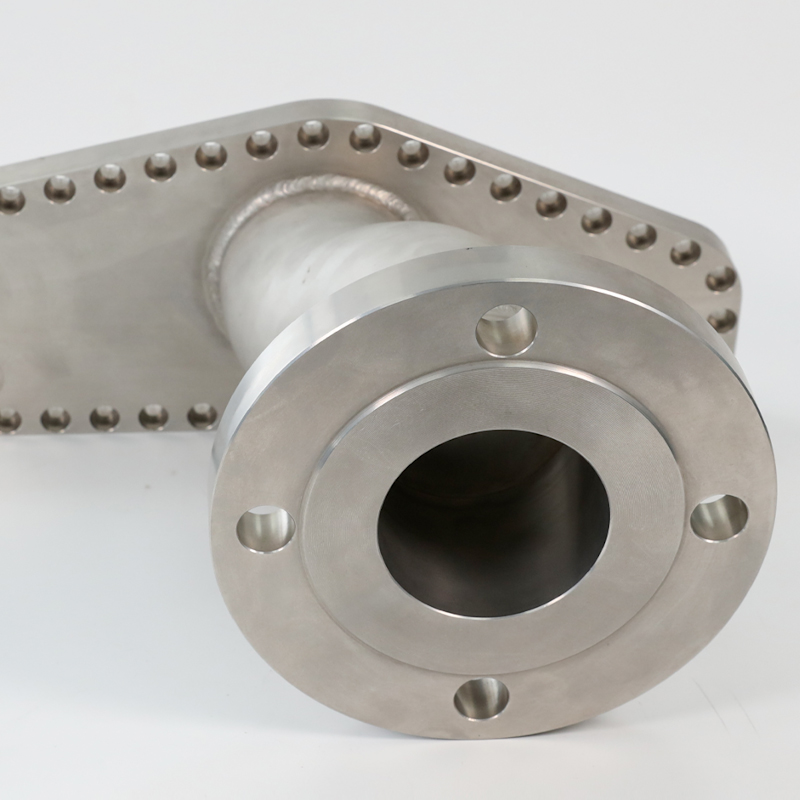

The irregular flange can be manufactured with customized dimensions, hole patterns, and sealing-face configurations to match specific equipment interfaces. The bent pipe is formed according to the required bend angle, pipe diameter, and overall length, allowing the finished assembly to fit complex routing requirements.

Integrated CNC Milling, Turning, Bending and Welding

To manufacture this type of complex component, our professional factory combines multiple precision processes rather than relying on a single machining operation.

The irregular flange is produced through CNC milling, drilling, and tapping to create the required multi-hole mounting and sealing surfaces. The pipe section is formed through controlled pipe bending, followed by CNC turning of the end connections where required.

After machining and forming, TIG welding is used to join the bent pipe and flange components. The welded assembly is then subjected to weld grinding and finishing operations such as brushing, polishing, or passivation according to the customer's application requirements.

This integrated production approach helps maintain dimensional consistency between individual components and the final assembly.

Stainless Steel 304 with Material Options

The standard material for this customized assembly is stainless steel 304, offering a practical combination of corrosion resistance, mechanical performance, and machinability for a wide range of industrial applications.

For applications requiring enhanced corrosion resistance or specific material characteristics, we can also manufacture components from 316L or 321 stainless steel, subject to the customer's technical specifications.

Material selection can be matched to the working environment, fluid medium, temperature conditions, and corrosion requirements.

Flexible Flange and Pipe Customization

Every component can be configured according to the installation and operating requirements of the customer's equipment. Available customization options include:

• Custom pipe diameter, length, and bend angle

• Custom irregular flange dimensions

• Custom hole quantity, hole position, and hole pattern

• Custom sealing-face configurations

• Custom thread standards

• Material customization, including 304, 316L, and 321 stainless steel

• Brushing, polishing, passivation, and electropolishing

• Production from 2D drawings, 3D CAD files, or physical samples

This makes our precision CNC machining service suitable for both one-off prototypes and customized production components.

Designed for Space-Constrained Pipeline Systems

The S-shaped pipe configuration allows the assembly to route around surrounding equipment while maintaining the required connection points. Combined with an irregular multi-hole flange, the design can accommodate specialized equipment interfaces that standard off-the-shelf fittings may not fit.

Typical applications include large-bore vacuum pipeline transitions, equipment connections, cooling circuits, and industrial fluid-transfer systems.

Applications Across Industrial Equipment

Semiconductor and Vacuum Equipment

For semiconductor and vacuum systems, customized stainless steel pipeline components can be used for large-bore vacuum connections and equipment transition sections where accurate interfaces and clean surface finishes are important.

Hydrogen and Lithium Battery Equipment

Customized pipe and flange assemblies can be used in cooling, fluid-transfer, and process-piping systems associated with new-energy manufacturing equipment.

Chemical and Industrial Fluid Systems

Stainless steel construction combined with customized machining and surface treatment provides options for industrial fluid-transfer applications where corrosion resistance and reliable connections are required.

Shipbuilding and Heavy Industry

Customized large-diameter pipeline components can be manufactured for seawater and industrial-medium transportation systems, with material and finishing options selected according to the operating environment.

Quality Control Before Shipment

As a professional manufacturing facility, we understand that customized CNC components require more than dimensional machining. Quality needs to be controlled throughout the production process.

Our production workflow includes at least three QC inspections before shipment, covering key manufacturing and assembly requirements. This helps identify dimensional, machining, welding, and finishing issues before the finished components are delivered.

For customers with specific inspection requirements, technical specifications and quality-control criteria can be discussed before production.

18 Years of CNC Manufacturing Experience

With 18 years of experience in custom machining, our team has developed practical expertise in manufacturing complex components that combine CNC machining, pipe forming, welding, and surface finishing.

As a cnc machining manufacturer, we focus on translating customer drawings and samples into manufacturable components while maintaining communication throughout the production process. Our professional factory supports customized orders, sample production, and technical assistance for projects with non-standard requirements.

Competitive Manufacturing and Technical Support

Our service is built around customized industrial production rather than standard catalog products. Customers can work directly from their existing drawings, samples, or design requirements, while our team provides technical support throughout the manufacturing process.

Our key service benefits include:

• 18 years of custom manufacturing experience

• Competitive pricing for customized components

• Multiple QC inspections before shipment

• Fast production and shipping arrangements after payment confirmation

• Free technical support

• OEM/ODM customization based on drawings or samples

• Sample orders accepted

• Return and exchange support according to applicable order conditions

Request a Custom CNC Machined Component

If you need a custom stainless steel flange, bent pipe assembly, vacuum pipeline component, or other non-standard machined part, send us your 2D drawing, 3D CAD file, or sample.

Our team can review your requirements and provide a customized manufacturing solution based on the required dimensions, materials, machining processes, connection standards, welding requirements, and surface finish.

Contact our professional factory today to discuss your next precision CNC machining project.
